Flowserve Logix 3800 Positioner with Chinese Valve: Precision Control for Industrial Applications

1
MOQ
Negatiation
τιμή
Flowserve Logix 3800 Positioner with Chinese Valve: Precision Control for Industrial Applications
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Features: Easy, Simple, Accurate
Operating Media: Air/Gas/Liquid
Type: Piston
Process Control: Flow, Pressure, Temperature, Level
Actuator Size: 2-12 Inch
Connectin: 1/4 NPT
Communication Protocol: 4-20 MA HART
Warranty Period: 1 year
Direction Of Action: Reversible
Valve Seat Material: PTFE
Signal Communication: HART 5 Or 7 Over 4-20mA
Operating Temperature: Standard Temperature
Protection: IP66 And NEMA 4X
Shell Material: Industrial Aluminum Housing
Repeatability: +/- 0.3 Percent Full Span
Επισημαίνω:

Flowserve Logix 3800 positioner

,

Chinese valve positioner

,

industrial pneumatic control valve
Βασικές πληροφορίες
Μάρκα: Flowserve
Model Number: Logix 3800
Έγγραφο: xiangjing valve&instrument ...t .pdf
Πληρωμής & Αποστολής Όροι
Delivery Time: 4-12 Week
Payment Terms: L/C,Western Union,T/T
Περιγραφή προϊόντων

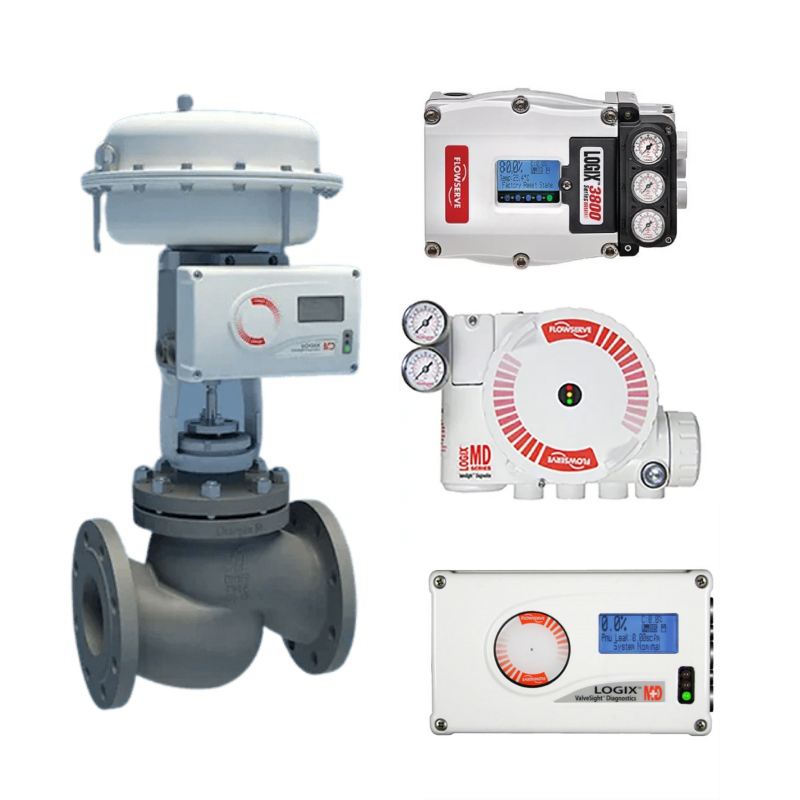

Flowserve Logix 3800 Positioner with Chinese Valve
Precision control solution for industrial valve positioning applications
Product Overview
The Flowserve Logix 3800 Positioner is a high-performance device designed for precise control of valve positioning in various industrial applications. This smart solution accurately positions valves based on input signals, ensuring optimal flow control and process efficiency.
Key Features
  • High Precision: Advanced control algorithms ensure accurate valve positioning for strict industrial requirements
  • Fast Response: Quickly adjusts to input signal changes for optimal system efficiency
  • Reliable Operation: IP66/NEMA 4X protection against dust, moisture, and vibrations
  • Wide Temperature Range: Operates from -40℃ to +80℃ for diverse environments
  • User-Friendly Interface: Clear display and intuitive controls for easy operation
  • Advanced Diagnostics: Real-time performance monitoring and issue detection
  • Versatile Compatibility: Integrates with various valves and control systems
Technical Specifications
Attribute Value
Features Easy, Simple, Accurate
Operating Media Air/Gas/Liquid
Type Piston
Process Control Flow, Pressure, Temperature, Level
Actuator Size 2-12 Inch
Connection 1/4 NPT
Communication Protocol 4-20 MA HART
Warranty Period 1 year
Direction Of Action Reversible
Valve Seat Material PTFE
Signal Communication HART 5 Or 7 Over 4-20mA
Operating Temperature Standard Temperature
Protection IP66 And NEMA 4X
Shell Material Industrial Aluminum Housing
Repeatability +/- 0.3 Percent Full Span
Performance Specifications
Input Signal: 4-20mA DC
Power Supply: Taken from the 4-20mA control signal
Minimum Terminal Voltage: 11.2V DC
Minimum Current Signal: 3.6mA
Air Supply Pressure: 20-100psi (1.4-6.9bar) for single-acting; 20-150psi (1.4-10.3bar) for double-acting
Air Consumption: Varies with air supply pressure and application type
Stroke: Linear: 10-150mm; Rotary: 0-90° (extended to 300° available)
Key Benefits
  • Enhanced process control through high-precision positioning
  • Reduced maintenance costs with advanced diagnostics
  • Extended equipment life through robust design
  • Improved operational efficiency with quick installation
Industrial Applications
The Logix 3800 Positioner is essential for flow control, pressure regulation, and temperature management in:
  • Oil and gas processing
  • Chemical manufacturing
  • Power generation facilities
  • Water treatment plants
  • Other industrial process control systems
This precision positioner delivers reliable performance in demanding industrial environments, optimizing production processes and ensuring long-term operational stability.
