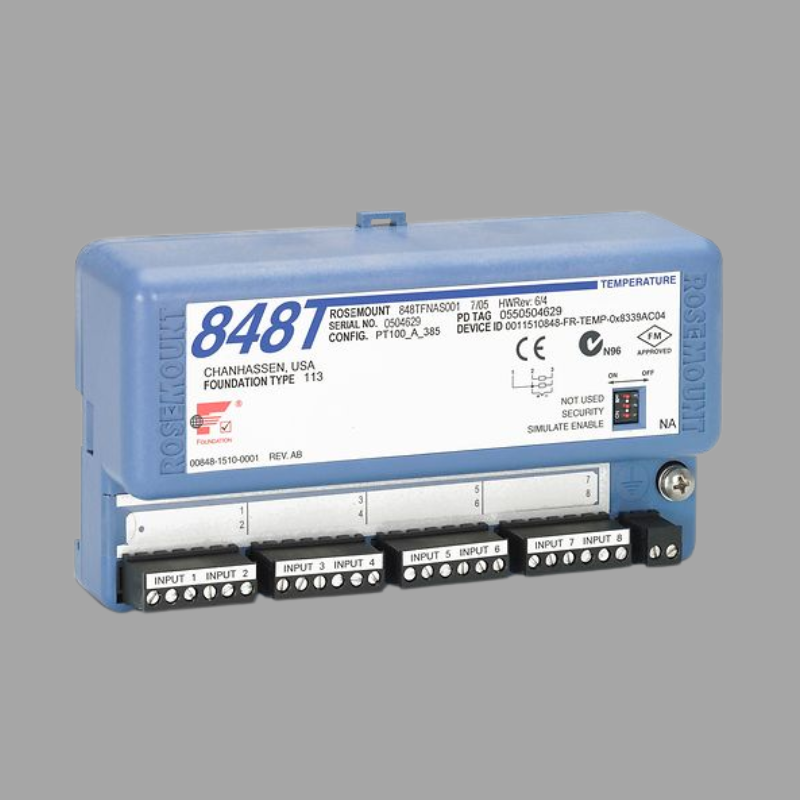

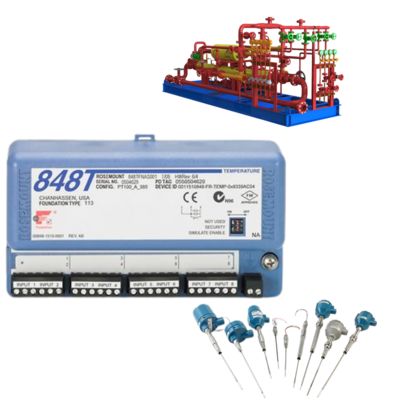

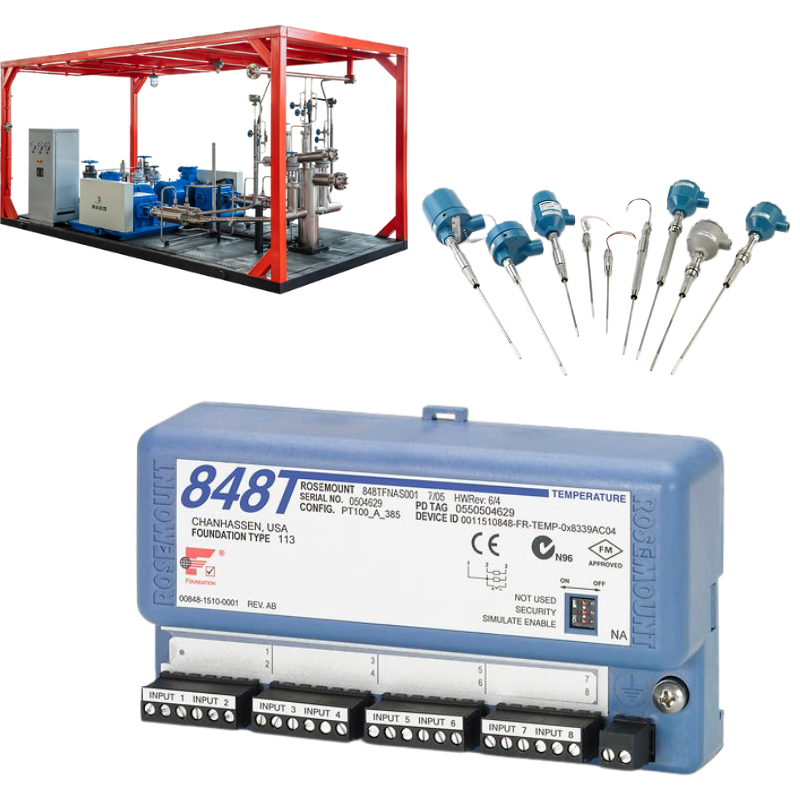

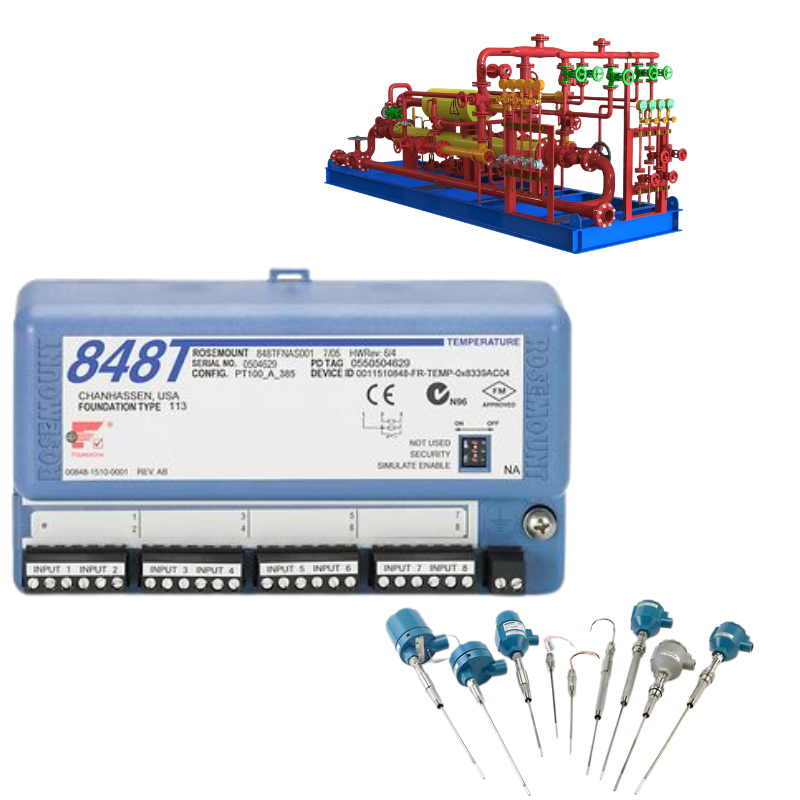

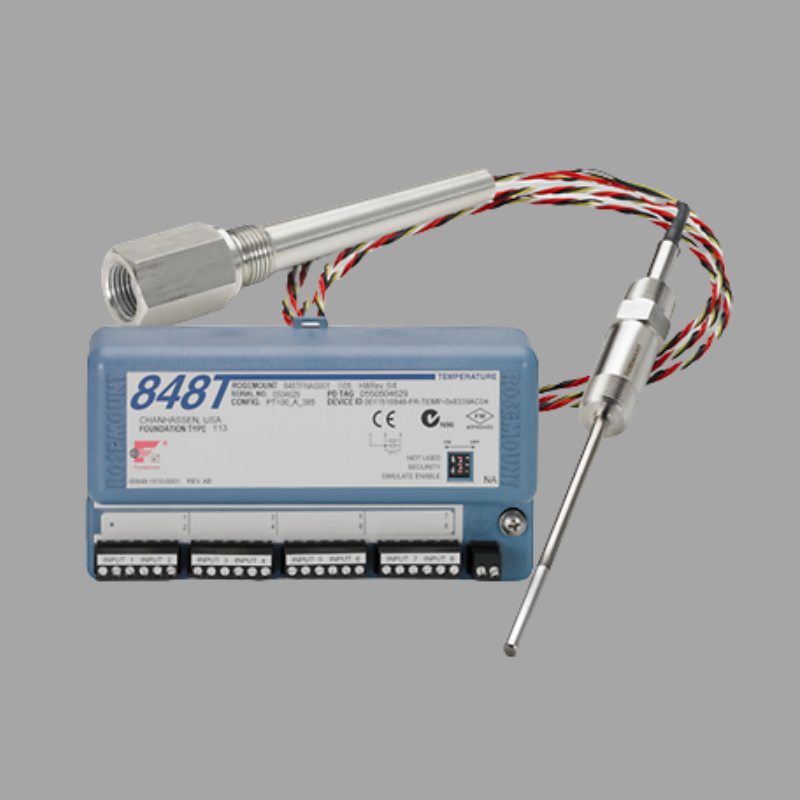

Rosemount 848T Temperature Transmitter with 214 RTD Sensor -196 to 425°C

The Rosemount 848T is a high-performance, 2-wire temperature transmitter from Emerson, a leader in process automation technology. It is designed to accurately and reliably measure temperature using a variety of RTD (Resistance Temperature Detector) or thermocouple inputs and transmit a standardized 4-20 mA output signal or a digital signal via the HART® (Highway Addressable Remote Transducer) protocol to a control system, such as a DCS (Distributed Control System) or PLC (Programmable Logic Controller). As a critical component in the modern industrial instrumentation landscape, the 848T is engineered for exceptional stability, durability, and ease of use across a vast spectrum of demanding applications.

At its heart, the 848T's primary function is to convert the often small and non-linear electrical signals from temperature sensors into a robust, noise-resistant, and linear 4-20 mA signal. This signal is proportional to the measured temperature and can be transmitted over long distances to the control room. The transmitter boasts highly accurate measurement capabilities, with reference accuracy as low as ±0.05% of span for RTD inputs, ensuring precise process monitoring and control. This accuracy is maintained over time due to the transmitter's exceptional long-term stability, which minimizes measurement drift and reduces the need for frequent recalibration, thereby lowering the total cost of ownership.

A key feature of the 848T is its advanced sensor diagnostics. It continuously monitors the connected temperature sensor for potential issues such as open-circuit conditions, short circuits, and degradation. This proactive approach to maintenance allows operators to identify problems before they lead to process downtime, product quality issues, or safety incidents. Furthermore, the transmitter can perform lead resistance compensation for 2/3-wire RTD configurations, eliminating a common source of measurement error.

The Rosemount 848T is built to survive in some of the most challenging industrial environments. It is housed in a rugged, cast aluminum enclosure that provides excellent protection against moisture, dust, and electromagnetic interference (EMI/RFI), earning it an IP66, Type 4X rating. This makes it suitable for installation in outdoor areas, wash-down environments, and locations with high levels of electrical noise. Its wide operating temperature range ensures reliable performance in extreme ambient conditions, from freezing cold to intense heat.

Flexibility is a cornerstone of the 848T's design. It is a fully universal transmitter, meaning a single unit can be configured to accept virtually any type of RTD (e.g., Pt100, Pt1000), thermocouple (e.g., J, K, T, S, B, R), millivolt, or ohms input. This drastically simplifies inventory management, as plants can stock a single transmitter model for a wide array of temperature measurement points.

Configuration is remarkably simple and can be accomplished using the intuitive, two-button local interface (LUI) on the transmitter itself or, more commonly, via the HART protocol using a handheld communicator or a laptop running dedicated configuration software like Emerson's AMS Device Manager. Through HART, users can not only configure range and sensor type but also access detailed diagnostic information, run diagnostics, and even simulate output for loop testing. The two-button interface allows for basic configuration and troubleshooting without the need for any additional tools, a significant advantage in the field.

The Rosemount 848T is deployed across a multitude of industries due to its versatility and robustness. Common applications include:

• Oil & Gas: Monitoring critical temperatures in pipelines, separators, reactors, and furnaces.

• Chemical Processing: Precise temperature control in batch reactors, distillation columns, and exothermic reaction processes.

• Power Generation: Measuring steam and water temperatures in boilers, turbines, and heat exchangers.

• Pharmaceutical & Life Sciences: Providing accurate, reliable temperature data in hygienic processes where product quality is paramount.

• Food & Beverage: Monitoring and controlling temperatures in pasteurization, sterilization, and cooking processes.

In summary, the Rosemount 848T Temperature Transmitter represents a fusion of precision, durability, and intelligent functionality. It is more than just a signal converter; it is a reliable and smart field device that enhances process safety, improves operational efficiency, and provides valuable diagnostic insights, making it an indispensable tool for modern industrial automation.
