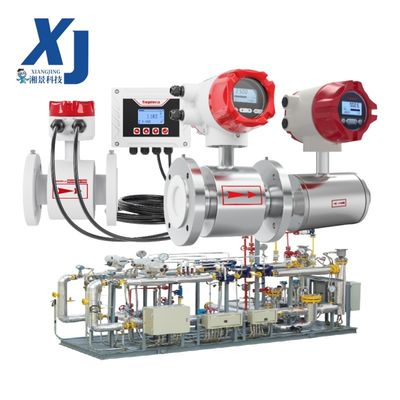

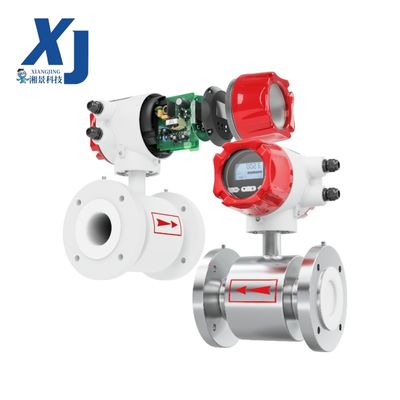

Supmea LDG-SUP-A100 Electromagnetic Flowmeter
Product Overview
The Supmea LDG-SUP-A100 Electromagnetic Flowmeter is a high-precision instrument designed for accurate measurement of conductive liquids in industrial processes. Utilizing advanced electromagnetic induction technology, this magmeter ensures non-intrusive flow detection with no moving parts, making it ideal for challenging environments like water treatment and chemical processing. With a wide flow range and robust construction, the LDG-SUP-A100 provides reliable performance, minimal maintenance, and seamless integration into control systems via 4-20 mA and HART outputs. Certified for IP67 protection, it excels in corrosive and hygienic applications, delivering cost-effective solutions for fluid management.
Key Features
- Non-Intrusive Measurement: No moving parts for reduced maintenance and long service life.
- High Accuracy: ±0.5% of reading for precise flow data.
- Wide Flow Range: Supports velocities from 0.1 to 15 m/s.
- Conductivity Requirement: Measures liquids with conductivity ≥5 μS/cm.
- Multiple Outputs: 4-20 mA, HART, RS485 for easy system integration.
- Robust Liner Materials: PTFE, PFA, or rubber for corrosive and hygienic media.
- IP67 Protection: Dust-tight and water-resistant for harsh environments.

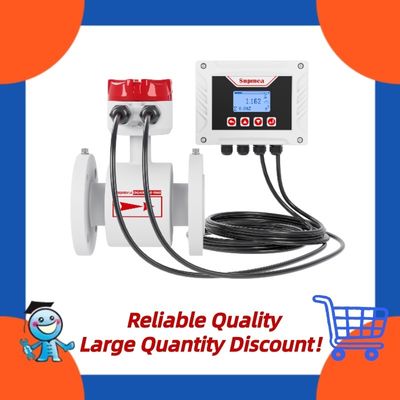

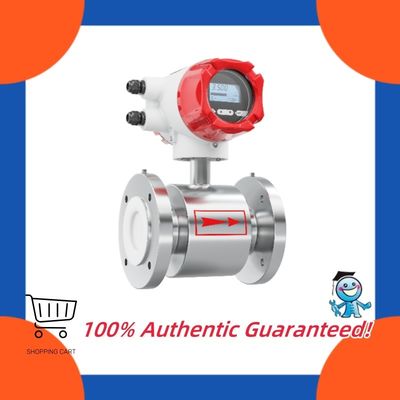

- Remote/Integral Options: Flexible installation configurations.
Technical Specifications
| Parameter |
Specification |
| Flow Range |
0.1 to 15 m/s |
| Accuracy |
±0.5% of reading (≥DN300: ±0.5% + 1 mm/s) |
| Repeatability |
±0.1% of reading |
| Size Range |
DN10 to DN3000 (0.5" to 120") |
| Conductivity |
≥5 μS/cm |
| Liner Materials |
PTFE, PFA, Hard Rubber, Polyurethane |
| Electrode Materials |
316L SS, Hastelloy C, Titanium, Tantalum |
| Output Signals |
4-20 mA HART, RS485, Pulse/Frequency |
| Power Supply |
24 VDC (16–36 V), 110/220 VAC (optional) |
| Temperature Range |
Liner: -20°C to 120°C; Ambient: -20°C to 60°C |
| Pressure Rating |
ANSI Class 150 to 600 |
| Enclosure Rating |
IP67 |
| Certifications |
CE, RoHS, Exd IIC T6 (optional) |
Applications
The Supmea LDG-SUP-A100 Electromagnetic Flowmeter is optimized for conductive liquid measurement in various industries:
- Water Treatment: Accurate monitoring of raw and treated water flow.
- Chemical Processing: Handles corrosive and abrasive fluids with PTFE liner.
- Wastewater Management: Reliable flow measurement in sewage and sludge systems.
- Food and Beverage: Hygienic PFA liner for sanitary applications.
- Pulp and Paper: Measures slurry and chemical flows in production lines.
Frequently Asked Questions
What liquids can the LDG-SUP-A100 measure?
It measures conductive liquids (≥5 μS/cm) like water, wastewater, chemicals, and slurries.
How accurate is the LDG-SUP-A100?
It offers ±0.5% accuracy of reading, with repeatability of ±0.1%.
Is the flowmeter suitable for corrosive media?
Yes, PTFE or PFA liners and Hastelloy electrodes handle corrosive fluids effectively.
What communication options are available?
Supports 4-20 mA HART, RS485, and pulse/frequency outputs for integration.
Can the LDG-SUP-A100 be installed horizontally or vertically?
Yes, it supports flexible orientations with no straight pipe requirements in some configurations.
