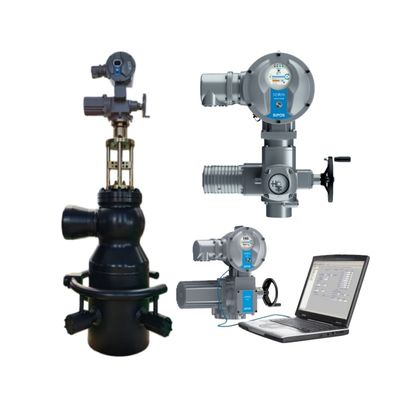

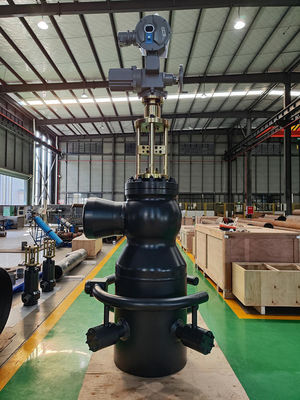

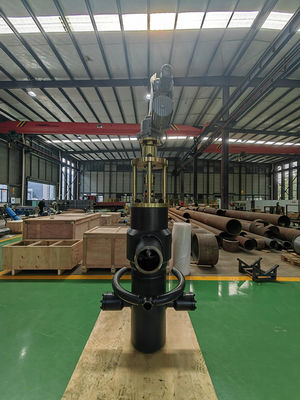

Bypass Valve with SIPOS 7 Electric Valve Actuator
Product Overview
The Bypass Valve with SIPOS 7 Electric Actuator is a smart automation solution for critical bypass applications, integrating a high-performance valve with the intelligent SIPOS 7 actuator. Equipped with predictive diagnostics, soft start/stop, and a high-resolution color display, it offers real-time monitoring of torque, position, and motor temperature. The actuator’s frequency-controlled drive ensures gentle valve operation, reducing wear and cavitation. With native support for Profibus DP, Modbus, and Ethernet/IP, it enables Industry 4.0 connectivity. Perfect for power generation, desalination, and chemical plants requiring fail-safe, energy-efficient flow control with minimal downtime.
Key Features
- Predictive Diagnostics: Torque and vibration monitoring.
- Soft Positioning: Frequency control prevents water hammer.
- Color Graphic Display: Intuitive local interface.
- Industry 4.0 Ready: Ethernet/IP, Profinet options.
- Fail-Safe ESD: Battery or capacitor backup.
- Energy Efficient: Up to 50% power savings vs. fixed speed.
- IP68 Sealed: Suitable for buried or flooded installation.
- Custom Valve Integration: Pre-engineered assemblies.
Technical Specifications
| Parameter |
Specification |
| Actuator |
SIPOS 7 Flash / Eco |
| Torque |
50 to 25,000 Nm |
| Positioning Resolution |
0.1% (12-bit encoder) |
| Speed Control |
Frequency inverter (0.1–100%) |
| Power |
3-phase 380–480 VAC |
| Communication |
Profibus DP, Modbus, Ethernet/IP |
| Protection |
IP68 |
| Ambient Temperature |
-30°C to +70°C |
| Valve DN |
50 to 1200 mm |
| Safety |
SIL 2, ATEX Zone 1/21 |
Applications
- Power Generation: Steam turbine bypass systems.
- Desalination: High-pressure pump recirculation.
- Chemical Plants: Reactor pressure relief bypass.
- District Cooling: Chilled water flow balancing.
- Oil Refineries: Product rundown line control.
Frequently Asked Questions
Does it have predictive maintenance?
Yes, monitors torque, vibration, and temperature trends.
Can it connect to Ethernet?
Yes, with Ethernet/IP or Profinet modules.
Is fail-safe operation included?
Yes, with optional battery/capacitor ESD.
Does it reduce water hammer?
Yes, soft start/stop via speed control.
Is it suitable for buried service?
Yes, IP68 rated for permanent submersion.
