Emer-son Tartarini FL Series Gas Pressure Control Pilot Valve LPG LNG Gas Pressure Reducing Regulator
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Μέγεθος σώματος: NPS 1, 2, 3, 4, 6, 8 και 10 / DN 25, 50, 80, 100, 150, 200 και 250
Πίεση εισόδου: 1480 psig / 102 bar
Πίεση εξόδου (περίβλημα).: 1480 psig / 102 bar
Ικανότητες θερμοκρασίας: -20 έως 140°F / -29 έως 60°C
Πίεση περιβλήματος έκτακτης ανάγκης: 1480 psig / 102 bar
Εύρος πίεσης εξόδου: 14,5 έως 1160 psig / 1,0 έως 80,0 bar
Τελικές συνδέσεις: CL300 RF, CL600 RF
Υλικό: Ανοξείδωτο ατσάλι
Βασικές πληροφορίες
Μάρκα: Tartarini
Αριθμό μοντέλου: Σειρά ΛΦ
Πληρωμής & Αποστολής Όροι
Συσκευασία λεπτομέρειες: Κουτί από χαρτόνι/Ξύλινο τελάρο
Χρόνος παράδοσης: 6-8 εβδομάδες
Όροι πληρωμής: T/T
Δυνατότητα προσφοράς: 800 σύνολα το χρόνο
Περιγραφή προϊόντων
Product Overview

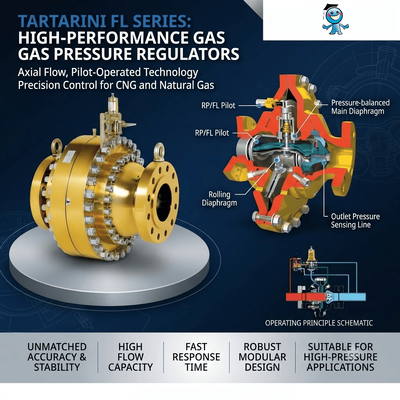

Tartarini FL Series regulators stand out for their pilot-operated axial flow design that handles high volumes of natural gas with excellent accuracy and quiet performance. These valves balance inlet pressure effectively, providing reliable reduction to downstream levels while maintaining tight shutoff even in variable conditions.

Technical Specifications
Parameter Details

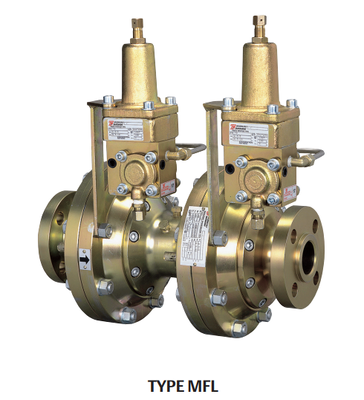

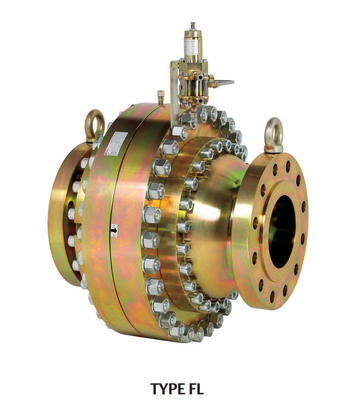

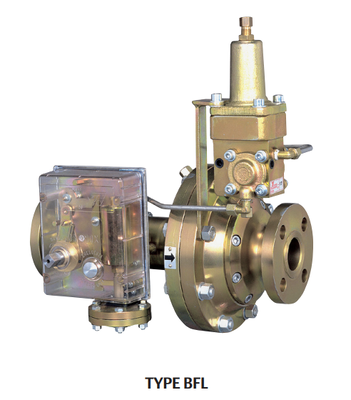

Available Configurations FL/FL-BP Regulator/Monitor; MFL/MFL-BP with monitor; BFL/BFL-BP with shutoff; silencers available.
Body Sizes DN 25, 40, 50, 65, 80, 100, 150, 200, 250 / NPS equivalents.
End Connections ASME CL300/CL600 RF; PN 16/25, CL150 options.
Inlet Pressure Range 0.2 to 100 bar / 30 to 1480 psig.
Outlet Pressure Range 0.01 to 80 bar / 0.15 to 1160 psig.
Minimum Operating Differential From 0.2 bar / 2.9 psig (low pressure configs) to 0.5 bar / 7.3 psig.
Temperature Capabilities -10°C to +60°C standard; extended low-temp versions available.
Key Features No atmospheric bleed, high capacity, in-service travel indicator, modular for maintenance.
Application Industry

Widely used in natural gas pipelines, city gate stations, distribution systems, power generation, and other facilities needing dependable pressure reduction for filtered non-corrosive gases.

Common Problems

Frequent challenges include excessive noise, slow response to load changes, or difficulty maintaining set pressure. FL Series mitigates these through advanced pilot control, noise reduction options, and balanced plug design.

Replacement Models

Suitable as upgrade or replacement for legacy high-pressure regulators in similar Tartarini lines or competitor models handling comparable flows and pressures.

Why Buy From Us

Genuine products backed by technical expertise, fast response to inquiries, and commitment to customer satisfaction ensure you get the right valve without unnecessary delays.

Stock & Delivery Time

Production-based supply with typical delivery in 6–8 weeks.

RFQ Form

Submit details including line size, operating pressures, gas type, required capacity, and any accessories for a prompt quotation.
