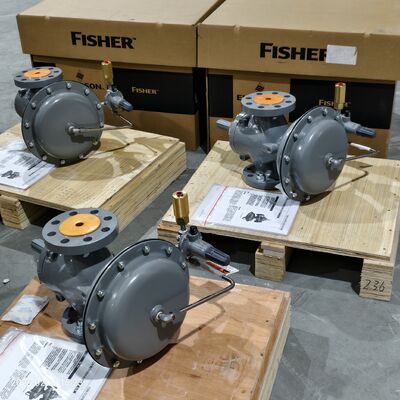

Fisher 1098-EGR Pilot-operated High-capacity Gas Pressure Regulator with 1500 psig Maximum Inlet Pressure

Fisher 1098-EGR is a high-capacity pilot-operated pressure reducing regulator for natural gas and industrial gases. It uses a Type 6358 pilot to provide stable downstream pressure with excellent accuracy across a wide flow range. This regulator is a standard choice in gas stations and industrial lines where precise control and high throughput are essential.

• Pilot-operated with balanced plug
• Low droop and tight shut-off
• High Cv values for large flows
• Soft-seat design
• Easy in-line maintenance
• Adjustable setpoint via pilot spring
• Optional internal relief

• Body Sizes: NPS 1 to 12 (DN 25 to 300)
• End Connections: NPT, CL125 FF, CL250 RF, PN 16/25/40
• Maximum Inlet Pressure: Up to 1500 psig (103 bar)
• Outlet Pressure Range: 3 to 500 psig (0.21 to 34.5 bar)
• Temperature Range: -20 °F to 180 °F (-29 °C to 82 °C)
• Body Materials: WCC steel, LCC steel, ductile iron

• City gate and district stations
• Industrial gas supply
• Burner gas pressure control
• High-flow pressure reduction
• Metering station regulation

Q: Suitable for high inlet pressure? A: Yes – up to 1500 psig depending on body size.

Q: Low droop performance? A: Yes – pilot-operated design gives excellent droop characteristics.
